1.8 MW class
QR-GT1800
1,800 kW class generator set for natural gas or diesel, built as a stationary package or a vehicle-mounted unit. Electrical efficiency is 24%. Exhaust heat recovers about 6 t/h of saturated steam at 180 °C. NOx is at or below 25 ppmv at 15% O₂, and the enclosure is IP56.
- Rated output
- 1,800 kW
- Electrical efficiency
- 24%
- NOxppmv @ 15% O₂
- ≤25 ppm
- Steam recoverySaturated, 180 °C
- 6 t/h
Configurations
Stationary
Package 12 × 2.8 × 5.8 m, ≤35 t. Main enclosure 8 × 2.65 × 2.9 m, ≤28 t.

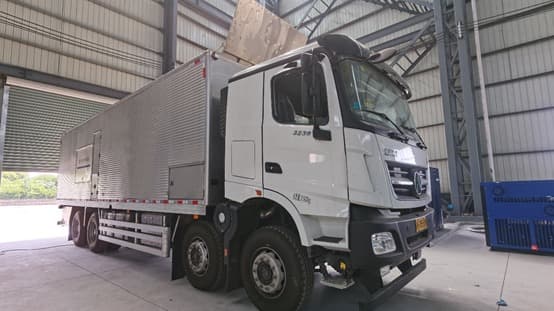

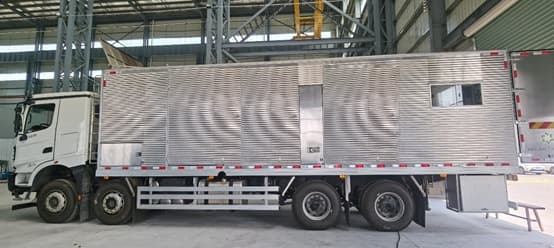

Vehicle-mounted
Package 12 × 2.55 × 3.9 m, ≤32 t. Main enclosure 9 × 2.5 × 2.8 m, ≤21 t.
Specifications
Turbine unit
- Rated power
- 1,800 kW
- Rated efficiency
- 24%
- Compression ratio
- 7.5
- Turbine inlet temperature
- 1,000 °C
- Exhaust temperature
- 520 °C
- Exhaust flow
- 10.9 kg/s
- Shaft speed
- 24,000 rpm
- Fuel
- Natural gas / diesel
- Fuel consumption
- 760 Nm³/h @ LHV 8,500 kcal
- Gas supply pressure
- 1.4–1.6 MPa
- Gas temperature
- ≥5 °C and ≥28 °C above dew point, ≤85 °C
- Gas filtration
- ≤10 µm
- Low-emission load
- ≥50%
- Minimum load
- 200 kW (400 Nm³/h)
- Heat recovery
- 6 t/h saturated steam at 180 °C

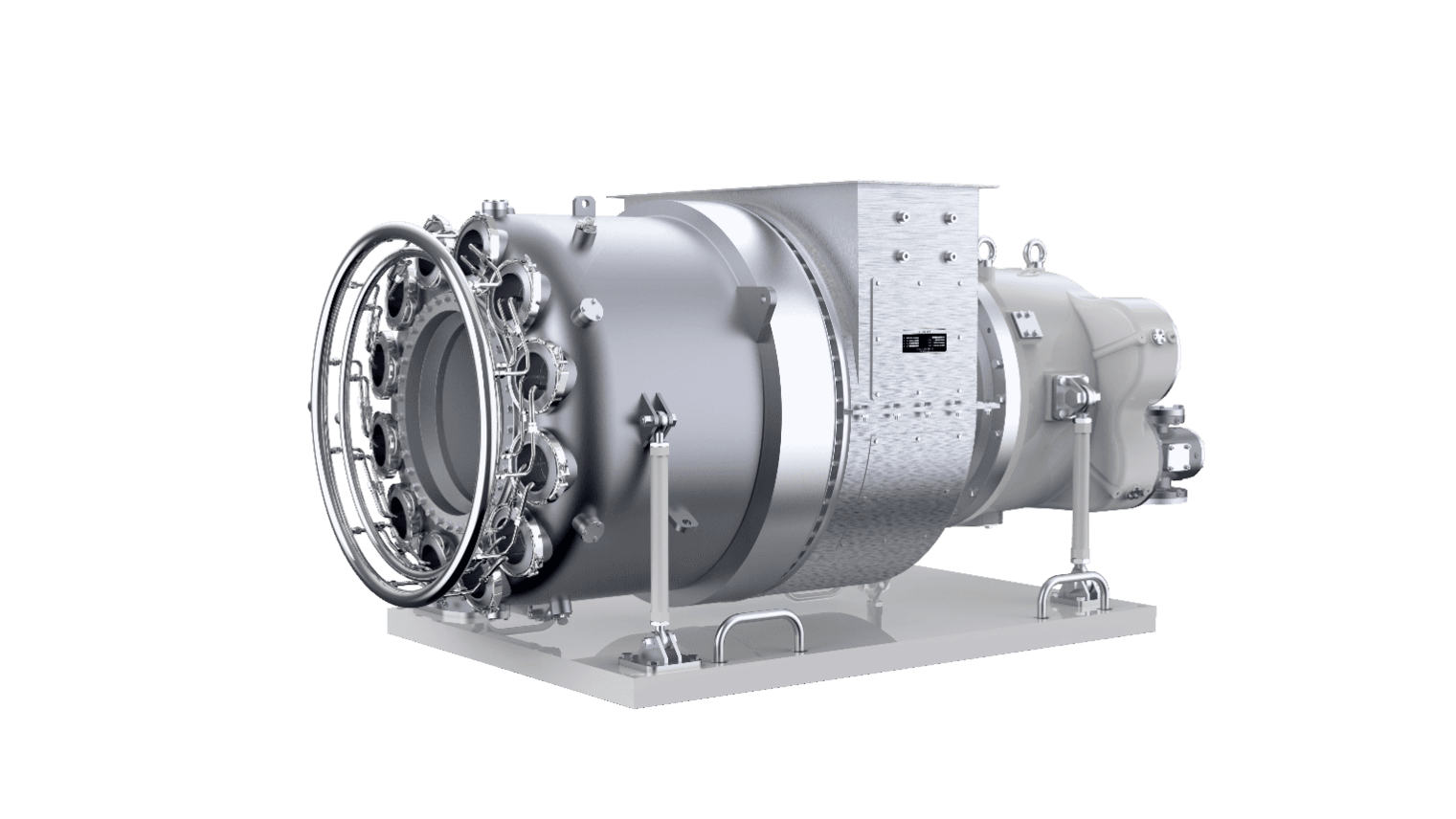

Structure
- Combustor
- Annular
- Compressor
- Centrifugal
- Shaft
- Single shaft
- Turbine
- Radial-inflow
- Core dimensions (L × W × H)
- 4.82 × 1.22 × 0.77 m
- Core weight
- ≤3.35 t
Environmental
- NOx
- ≤25 ppmv @ 15% O₂
- Noise
- ≤85 dB(A) @ 1 m
- Enclosure
- IP56
Generator
- Type
- Asynchronous
- Voltage
- 10.5 / 6.3 / 0.4 kVSelectable
- Frequency
- 50/60 HzSelectable
- Insulation class
- H
- Explosion protection
- No explosion-proofing needed (inside the enclosure)
- Protection
- IP23
