Cevonic Lighting
Outdoor and sports

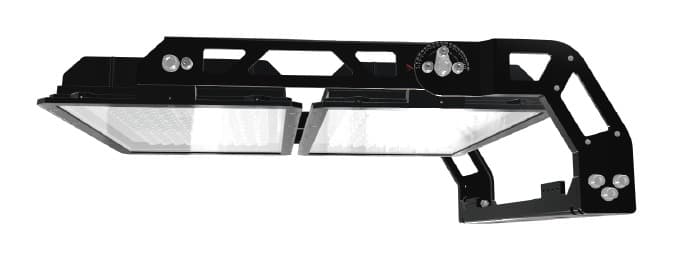

Modular outdoor floods for sports, roads, plazas and parking. The family reaches 261,000 lm at 1,800 W and 174,000 lm at 1,200 W, at up to 165 lm/W.
Why it matters
High-output ceramic floodlighting for open sites.
High output
Up to 261,000 lm at 1,800 W and 174,000 lm at 1,200 W.
Efficacy
Maximum luminous efficacy of 165 lm/W.
Ingress and impact
IP66, with IK08 or IK09 depending on the SL model.
Wind
Wind resistance stated up to Grade 17. Tempered glass is specified to slow lumen loss.
Dimming
0–10 V analogue dimming, with non-dimming versions also offered. Compatible with smart lighting platforms.
Modular service
Separated power chamber and modular LED boards, to lighten the pole and shorten a maintenance visit.
Lineup
The lineup.
Ask for a layout and we will quote the fitting that matches the mounting height.
| Parameter | SL03 | SL04 | SL05 | SL06 | SL07 |
|---|---|---|---|---|---|
| Power | 600 / 1,200 / 1,800 W | 600 / 800 / 1,000 / 1,200 W | 200 / 400 / 600 W | 300 / 680 / 900 / 1,200 W | 250 / 500 / 750 / 1,000 W |
| IK rating | IK08 | IK09 | IK09 | IK09 | IK09 |
| Beam | 15° / 25° / 30° / 40° / 60° / 90°; 110×40° / 135×60° / 140×65° | 12° / 15° / 22° / 25° / 40° / 60° | T030-000 / T120-045 | T030-000 / T120-045 / T130-065 | T030-000 / T120-045 / T130-065 |
| IP rating | IP66 | IP66 | IP66 | IP66 | IP66 |
| Warranty | 10 years | 10 years | 7 years | 7 years | 7 years |
Family output reaches 261,000 lm at 1,800 W and 174,000 lm at 1,200 W, at up to 165 lm/W. Other distributions: 22°×100°, 30°×40°, 40°×70° and Type III.
Scenarios
Typical sites

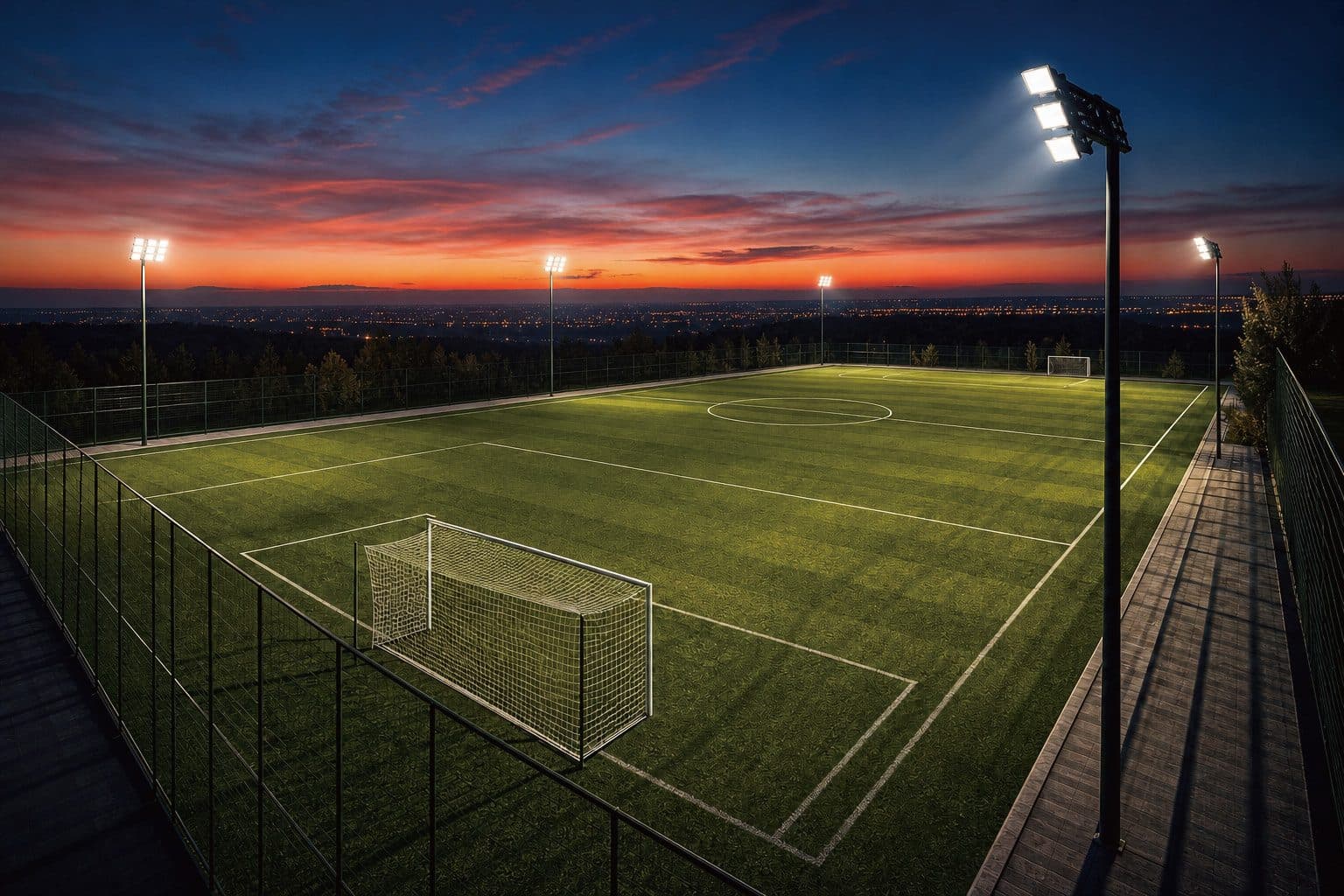

- Sports venues — football, basketball, tennis
- Roads and highways
- Public squares and plazas
- Parking areas
- Landscape lighting
Plan the outdoor and sports layout.
Share the building size, mounting height, species or crop, and whether you need dimming. We reply with a proposed layout and a quotation.
