OEM
Put your brand on livestock lighting built in the 20,000 m² plant, with 100% inspection and the FTC ceramic LED.
Cevonic Lighting · strategic partner
Core protection. Consistent illumination.
Qualirex supplies Cevonic ceramic LED lighting under a strategic partnership. The chip is shielded with fluorescent transparent ceramic, then built into Hullray livestock fittings, horticulture lights and outdoor floods for sites that stay hot, wet and corrosive.
- WarrantyOn luminaires
- 8 yr
- LifespanL80B20 @ 40 °C
- 70,080 h
- Washdown housingHigh-pressure cleaning on livestock tubes and bulbs
- IP69K
- H₂S test40 °C / 90% RH / 15 ppm, powered
- 168 h

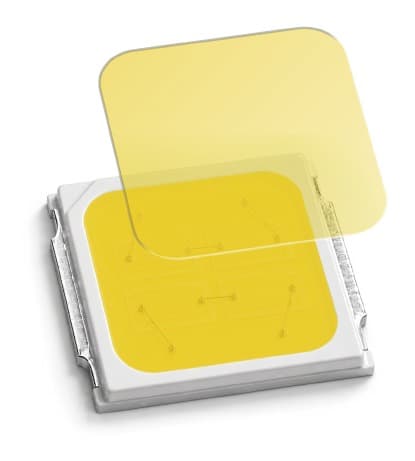

FTC ceramic
The chip is shielded, not only the housing.
Fluorescent transparent ceramic is applied on the LED itself, so ammonia and hydrogen sulfide meet a crystal layer before they meet the die.
Corrosion resistance
An inorganic ceramic layer isolates the chip from ammonia, acids, alkalis, hydrogen sulfide, steam and salt mist. Validated for 168 hours at 90% relative humidity and 15 ppm H₂S.
Thermal stability
At 250 °C, internal quantum efficiency falls about 15% on the ceramic substrate and about 45% on silicone. Returned to 25 °C, ceramic recovers its original performance; silicone keeps an irreversible loss above 10%.
Thermal conductivity
Conductivity above 20 W/m·K is about 100 times silicone at 0.2 W/m·K. LED junction temperature runs 3–10 °C lower.
No color shift
Phosphor is held in the ceramic matrix, so the spectrum stays put: no sedimentation, low SDCM deviation and no yellow halo over life.
Mechanical durability
Hardness close to sapphire, for impact and abrasion from wind-borne particles, with the ceramic machined for stable optical focus.
| Parameter | Traditional silicone | Cevonic FTC ceramic |
|---|---|---|
| Thermal conductivity | ~0.2 W/m·K | >20 W/m·K |
| Lumen decay @ 100,000 h | >15% | <5% |
| Corrosion resistance | Poor | Excellent |
| Color stability | Prone to shift | No shift |
| UV resistance | Degrades | Inherent |
- L90B10LM-80
- 52,000 h
- L80B10LM-80
- 102,000 h
- CCC
- CE
- CB
- SAA
- RoHS
- UL
LM-80 points are the chip rating (L90B10 and L80B10). Livestock luminaires publish a separate 70,080 h L80B20 life. Marks listed: CCC, CE, CB, SAA, RoHS and UL.
Applications
Livestock, horticulture and outdoor.
Hullray is the livestock series. Horticulture and outdoor lights share the same ceramic LED platform.
Hullray
Livestock fittings and controls.
Ten livestock products. Six are below; the livestock page holds the full set, split into luminaires and smart controls.
T21
Premium linear for cattle and equine
30 / 50 / 60 / 70 W
- Cattle
- Equine
- Food farming
T8
Tube for pig and poultry houses
10 / 18 / 20 / 24 W
- Poultry
- Duck
- Pigeon
- Swine
HB01
High-bay, standard and dual-circuit glass
60–150 W; dual-circuit 150 W
- Cattle
- Food processing
- Industrial
FL01
Ceramic floodlight
50 / 80 / 100 / 150 / 200 / 300 W
- Cattle
- Indoor barns
- Outdoor yards
D80
E27 poultry bulb
7–15 W, plus 10 W+5 W
- Poultry
IDS01
Intelligent dimmer and timer
100–240 V
- Livestock barns
- Group control
- Sunrise and sunset
Field results
Three barns.
Combined 8-year electricity savings across the three retrofits are $174,418. Milk figures are whole-farm results, not a lighting-only trial.
- Energy reductionBanner dairy connected load
- 58.8%
- Milk yieldBanner dairy, 3 kg/cow/day
- +8.6%
- Design life70,080 h at 16 h/day
- 12 yr
- Luminaire warranty
- 8 yr
Dairy
Full lighting retrofit of a lactating cow barn
Junlebao Dairy Group · Zhangjiakou, Hebei, China
- Fixtures
- 1,098 → 603
- Connected load
- 87.84 → 36.18 kW
Dairy
Replacing 200 W fixtures in a lactating barn
Junlebao Dairy Group · China
- Fixtures
- 180 → 300
- Connected load
- 36 → 18 kW
Swine
Gestation barn relight with Hullray T8
Giantstar Farming & Husbandry Co., Ltd. · Leshan, Sichuan, China
- Fixtures
- 736 → 647
- Connected load
- 18.4 → 15.5 kW
Total cost
One investment, counted over ten years.
30%+ energy savings against conventional LED at the same output, and up to 60% lower total cost of ownership over 10 years against standard industrial lighting. Your site is quoted separately.
- Energy savingsVersus conventional LED at the same light output
- 30%+
- Lower 10-year TCOUp to 60% versus standard industrial lighting
- 60%
| Parameter | Typical scenario | Cevonic scenario |
|---|---|---|
| Initial investment | Comparable across brands | Comparable across brands |
| Lumen output stability (yr 1–8) | Lumen decay >5% | <5% decay — FTC ceramic |
| Replacement likelihood (10 yr) | 1–2 times, typical | Minimal — designed for longevity |
| Maintenance labor | Reactive, unplanned | Reduced — stable output |
| Warranty coverage | Industry standard | Extended — engineering-backed |
| Total cost trajectory | Rises with each event | Controlled, with little added cost |
A planning comparison, not a quotation. Lumen decay stays under 5% from year 8 onward under the stated operating conditions. Every facility’s cost is different.
Cevonic
A strategic partnership with Cevonic.
Qualirex supplies the Cevonic range. Cevonic builds it: engineers and scientists with 10+ years of average experience, a 20,000 m² plant, and inspection of every unit before it ships.
- InvestmentFrom family offices and LED industry backers
- $20M+
- ManufacturingFacility built for scale and precision
- 20,000 m²
- PatentsFTC material and packaging
- 30+
- Average expertiseEngineers and scientists
- 10+ yrs
Partners
OEM, ODM, agents and distributors.
Manufacturers, local representatives and Hullray distributors can work with Cevonic through Qualirex. Ask us for a quotation.
ODM
Engineering support for housing, spectra, beam, packaging and 0–10 V controls around the same ceramic platform.
Sales agents
Cevonic supplies the ceramic range. Local agents cover the territory and the projects that replace ordinary barn lighting.
Distributors
Authorized Hullray distribution with product training, marketing material and help on project layouts.
Talk to us about a Cevonic partnership.
Tell us the territory, the species or the crop, and whether you need OEM, ODM, an agency or distribution. We reply by email.
