Hullray by Cevonic · HB01
High-bay, standard and dual-circuit glass
Graphene heat sink and a glass cover. The standard version is 60 to 150 W at IP65. The dual-circuit version is 150 W at IP67, with two 75 W channels.
- PowerDual-circuit model is 150 W
- 60–150 W
- EfficacyStandard glass, ±5%
- 150 lm/W
- Standard IPDual-circuit is IP67
- IP65
- LifetimeL80B20 @ 40 °C
- 70,080 h
- Cattle
- Food processing
- Industrial
- Standard glass from 60 to 150 W, or dual-circuit glass at 150 W
- Graphene heat sink
- Ceramic LEDs, flicker-free
- 0–10 V dimming; standard version also has a DIP switch
Datasheet
Specifications
Glass high-bay for livestock barns and industrial halls.
Electrical
- Power, standard glass
- 60 / 80 / 100 / 120 / 150 W
- Power, dual-circuit glass
- 150 W (two 75 W circuits)
- Input voltage
- AC 100–277 V, 50/60 Hz
- Dimming, standard
- 0–10 V / DIP switch
- Dimming, dual-circuit
- 0–10 V
- Surge protection
- 6 kV
- Insulation class
- Class I
- Power factor
- ≥0.95 (Europe)
Optical
- LED, standard
- 3030 ceramic / 2835 PCT
- LED, dual-circuit
- 3030 ceramic
- CCT, standard
- 4000 K / 5000 K + 625–630 nm / full spectrum / optimized spectrum
- CCT, dual-circuit
- 3000 K + 5000 K / 4000 K + 625–630 nm / 5000 K + 625–630 nm
- CRI
- ≥80
- Beam angle
- 120°. Other beam angles on request.
- Luminous efficacy
- 150 lm/W (±5%)Standard glass
- Lumen output, standard
- 60 W: ≥9,000 lm; 80 W: ≥12,000 lm; 100 W: ≥15,000 lm; 120 W: ≥18,000 lm; 150 W: ≥22,500 lm±5%
- Dual-circuit, 5000 K + 625–630 nm
- 75 W 5000 K: 9,604 lm; 75 W 625–630 nm: 1,651 lm; 150 W combined: 11,675 lm±5%
- Dual-circuit, 3000 K + 5000 K
- 75 W 3000 K: 10,391 lm; 75 W 5000 K: 11,244 lm; 150 W combined: 20,121 lm±5%
- Flicker
- Flicker-freeComplies with the ErP energy-efficiency certification flicker-free standard
Mechanical
- Housing, standard

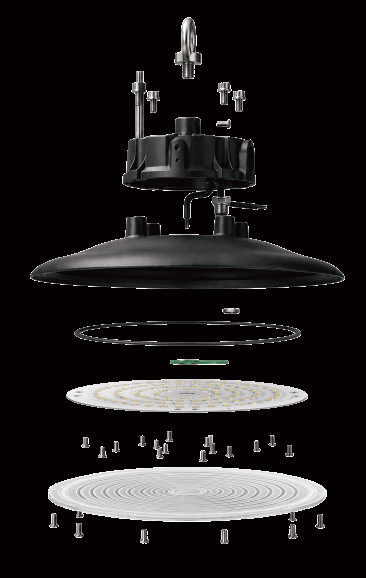

- Graphene heat sink + ADC12 power box + glass cover

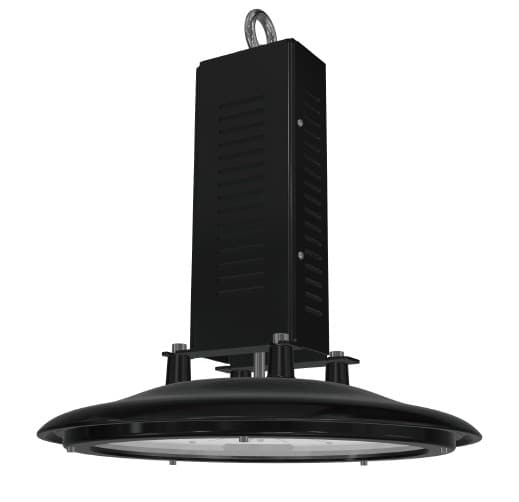

- Housing, dual-circuit
- Graphene heat sink + AL5052 driver housing + glass cover
- Cover
- Transparent glass
- Dimensions, standard
- Ø298.2 × 163.7 mm
- Dimensions, dual-circuit
- Ø333.9 × 298 mm
Environmental
- IP rating
- IP65 standard glass; IP67 dual-circuit glass
- IK rating
- IK07
- Operating temperature
- −30 °C to 40 °C
- Storage temperature
- −40 °C to +70 °C5–90% RH
- Ammonia resistance
- 72 h · 30 °C · 28% concentrationUnpowered
- Hydrogen sulfide resistance
- 168 h · 40 °C · 90% RH · 15 ppmPowered
- Lifetime
- 70,080 hL80B20 @ 40 °C
- Warranty
- 8 years
Warranty and environment
- Warranty
- 8 years
- IP rating
- IP65 standard glass; IP67 dual-circuit glass
- Lifetime
- 70,080 h
- Hydrogen sulfide resistance
- 168 h · 40 °C · 90% RH · 15 ppm
L80B20 @ 40 °C
Powered
Ask for a layout using HB01.
Share mounting height, building size and the species. We reply with a count, a control scheme and a quotation.
